Bourns
3547S-1AA-502A
Potentiometer, Wire Wound, 1W, 5000ohm, 3% +/-Tol, -50,50ppm/Cel, 3 Turn(s), ROHS COMPLIANT
Resistance5kR
MountingPanel
Quick Jump:
Technical Specifications
Bourns 3547S-1AA-502A technical specifications.
General
Depth
22.48mm
Height
27.5mm
Length
40.43mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Mount
Panel
Number of Gangs
1
Number of Turns
3
Package Quantity
25
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
5kR
Resistance Tolerance
3%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
3547
Taper
Linear
Termination
Solder
Tolerance
3%
Type
Potentiometer
Compliance
RoHS
Compliant
Datasheet
Bourns 3547S-1AA-502A Datasheet
Download the complete datasheet for Bourns 3547S-1AA-502A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

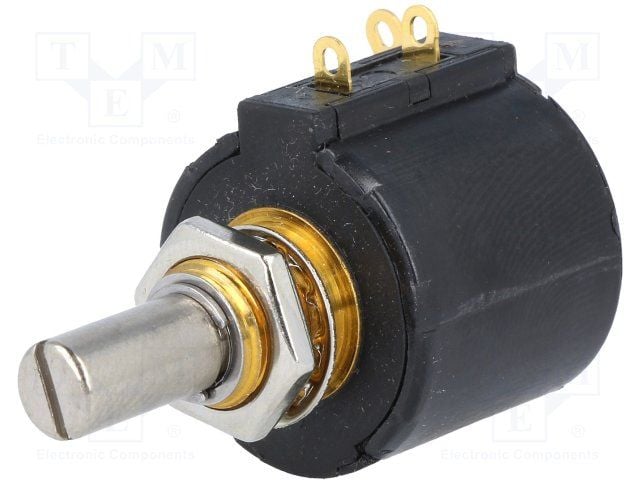

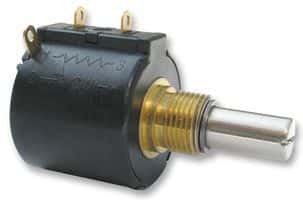

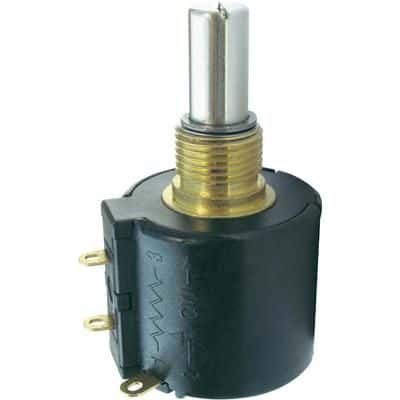

Product Images
