Wirewound rotary potentiometer featuring a 5 kΩ linear taper and 10-turn adjustment. This panel-mount potentiometer offers a 2W power dissipation rating and a 0.2% linearity. Operating temperature range spans from -40°C to 125°C, with solder termination and a single gang configuration.
Resistance5kR
MountingPanel
Quick Jump:
Technical Specifications
Bourns 3549S-1AA-502A technical specifications.
General
Actuator Diameter
0.25inch
Actuator Length
0.813inch
Depth
22.48mm
Height
27.5mm
Length
40.43mm
Linearity
0.2%
Max Operating Temperature
125°C
Max Power Dissipation
2W
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Panel
Number of Gangs
1
Number of Turns
10
Output
MONO
Package Quantity
5
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
5kR
Resistance Tolerance
3%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
3549
Taper
Linear
Termination
Solder
Tolerance
3%
Type
Potentiometer
Compliance
RoHS
Compliant
Datasheet
Bourns 3549S-1AA-502A Datasheet
Download the complete datasheet for Bourns 3549S-1AA-502A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

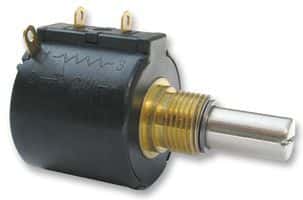

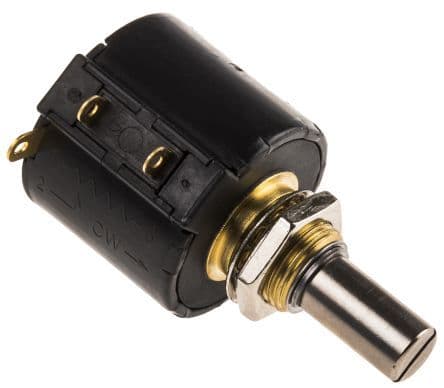

Product Images
