Thick film resistor network featuring 8 isolated elements, each with 3.3kΩ resistance and 2% tolerance. This 16-pin DIP package offers a power rating of 250mW per element and a total power dissipation of 2.25W. Operating across a temperature range of -55°C to 125°C, it boasts a 100V voltage rating and ±100ppm/°C TCR. Designed for through-hole mounting with a 2.54mm terminal pitch, this RoHS compliant component is ideal for various electronic applications.
PackageDIP
Resistance3.3kR
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4116R-1-332LF technical specifications.
General
Package/Case
DIP
Circuit Type
Isolated
Depth
7.87mm
Height
4.57mm
Lead Free
Lead Free
Lead Length
3.18mm
Lead Pitch
2.54mm
Length
21.97mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
16
Number of Elements
8
Number of Resistors
8
Package Quantity
25
Packaging
Rail/Tube
Power Per Element
250mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
3.3kR
Resistance Tolerance
2%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
4100R
Technology
THICK FILM
Terminal Pitch
2.54mm
Termination
Pin
Thickness
4.57mm
Tolerance
2%
Voltage Rating
100V
Voltage Rating (AC)
100V
DC Rated Voltage
100V
Width
4.69mm
Compliance
RoHS
Compliant
Datasheet
Bourns 4116R-1-332LF Datasheet
Download the complete datasheet for Bourns 4116R-1-332LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

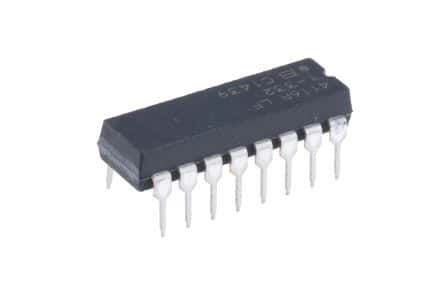

Product Images
