SIP resistor network featuring 9 isolated elements, each rated at 200mW, with a total resistance of 100 Ohms and a 2% tolerance. This through-hole component utilizes thick film technology and offers a 100V DC voltage rating. The bussed circuit type and 10 contacts with tin plating are housed in a SIP package with a 2.54mm terminal pitch. Operating temperature range is -55°C to 125°C, with lead-free and RoHS compliance.
PackageSIP
Resistance100R
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4310R-101-101LF technical specifications.
General
Package/Case
SIP
Circuit Type
Bussed
Contact Plating
Tin
Depth
2.16mm
Height
0.195inch
Lead Free
Lead Free
Length
24.99mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
10
Number of Elements
9
Number of Resistors
9
Package Quantity
20
Packaging
Bulk
Power Per Element
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100R
Resistance Tolerance
2%
RoHS Compliant
Yes
Series
4300R
Technology
THICK FILM
Terminal Pitch
2.54mm
Termination
Pin
Thickness
2.16mm
Tolerance
2%
Voltage Rating
100V
DC Rated Voltage
100V
Width
0.085inch
Compliance
RoHS
Compliant
Datasheet
Bourns 4310R-101-101LF Datasheet
Download the complete datasheet for Bourns 4310R-101-101LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

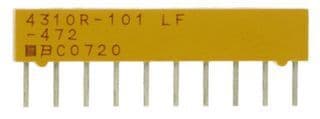

Product Images
