This resistor network features 9 isolated thick film elements, each with a 5.6kΩ resistance and 2% tolerance, rated for 200mW power and 100V DC. The component is housed in a 10-pin SIP package with a 2.54mm terminal pitch, designed for through-hole mounting. Operating across a wide temperature range of -55°C to 125°C, this RoHS compliant device offers a compact profile with dimensions of 24.99mm length, 2.16mm thickness, and 0.195inch height.
PackageSIP
Resistance5.6kR
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4310R-101-562LF technical specifications.
General
Package/Case
SIP
Circuit Type
Bussed
Depth
2.16mm
Height
0.195inch
Lead Free
Lead Free
Length
24.99mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
10
Number of Elements
9
Number of Resistors
9
Package Quantity
20
Packaging
Bulk
Power Per Element
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
5.6kR
Resistance Tolerance
2%
RoHS Compliant
Yes
Series
4300R
Technology
THICK FILM
Terminal Pitch
2.54mm
Termination
Pin
Thickness
2.16mm
Tolerance
2%
Voltage Rating
100V
DC Rated Voltage
100V
Width
0.085inch
Compliance
RoHS
Compliant
Datasheet
Bourns 4310R-101-562LF Datasheet
Download the complete datasheet for Bourns 4310R-101-562LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

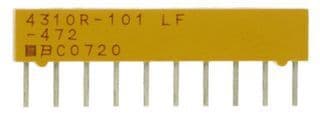

Product Images
