Bussed resistor network featuring 4 elements, each with a 3.3kΩ resistance and 2% tolerance. This through-hole component utilizes thick film technology and is housed in a SIP package with a 2.54mm lead pitch. Rated for 100V DC, it operates across a temperature range of -55°C to 125°C, with each element capable of handling 200mW of power.
PackageSIP
Resistance3.3kR
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4605X-101-332LF technical specifications.
General
| Package/Case | SIP |
| Circuit Type | Bussed |
| Depth | 2.49mm |
| Height | 0.2inch |
| Lead Pitch | 2.54mm |
| Length | 12.65mm |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 4 |
| Number of Resistors | 4 |
| Package Quantity | 200 |
| Packaging | Bulk |
| Power Per Element | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 3.3kR |
| Resistance Tolerance | 2% |
| RoHS Compliant | Yes |
| Series | 4600X |
| Technology | THICK FILM |
| Terminal Pitch | 2.54mm |
| Termination | Pin |
| Tolerance | 2% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 4605X-101-332LF Datasheet
Download the complete datasheet for Bourns 4605X-101-332LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

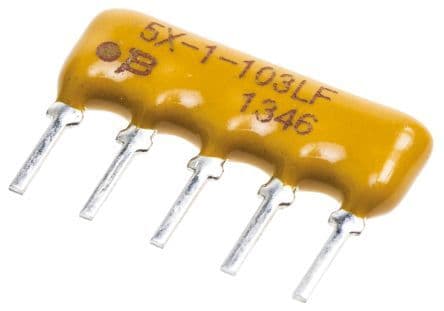

Product Images
