The Bourns 5900-393-RC is a ferrite axial inductor with a maximum DC current of 100mA and a maximum operating temperature of 105°C. It has a minimum operating temperature of -55°C and is RoHS compliant. The inductor is packaged in a tray with 100 units per package and has a tolerance of 10%. It is designed for through-hole mounting and has a lead diameter of 0.032inch.
PackageAxial
MountingThrough Hole
Inductance39mH
Quick Jump:
Technical Specifications
Bourns 5900-393-RC technical specifications.
General
| Package/Case | Axial |
| Core Material | Ferrite |
| DC Current | 100mA |
| DC Resistance (DCR) | 31R |
| Diameter | 11.51mm |
| Inductance | 39mH |
| Lead Diameter | 0.032inch |
| Lead/Base Style | Axial |
| Length | 0.9inch |
| Max DC Current | 100mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Saturation Current | 130mA |
| Series | 5900 |
| Shielding | Unshielded |
| Termination | Axial |
| Test Frequency | 1kHz |
| Tolerance | 10% |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 5900-393-RC Datasheet
Download the complete datasheet for Bourns 5900-393-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

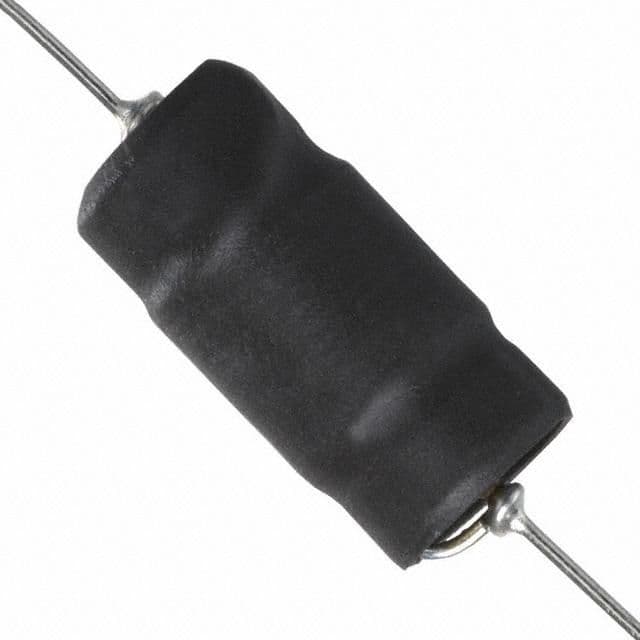

Product Images
