Resistance100kR
MountingPanel, Through Hole
Quick Jump:
Technical Specifications
Bourns 91A2A-B28-D20/D20L technical specifications.
General
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
250mW
Mount
Panel, Through Hole
Number of Gangs
2
Number of Turns
1
Packaging
Tray
Resistance
100kR
Resistor Type
Conductive Plastic
RoHS Compliant
Yes
Series
91
Taper
Logarithmic
Technology
CONDUCTIVE PLASTIC
Termination
PC Pins
Tolerance
20%
Type
Potentiometer
Compliance
RoHS
Compliant
Datasheet
Bourns 91A2A-B28-D20/D20L Datasheet
Download the complete datasheet for Bourns 91A2A-B28-D20/D20L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

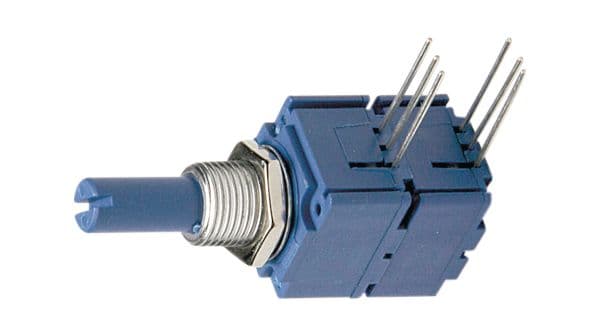

Product Images
