Isolated resistor network, 4 elements, 10 ohm resistance with 5% tolerance. Features 62.5mW power per element, 50V voltage rating, and thick film technology. Surface mountable in a 1206 (3216 metric) case code. Operating temperature range from -55°C to 125°C. RoHS compliant with tin contact plating.
Package1206
Resistance10R
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CAY16-100J4LF technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Circuit Type
Isolated
Contact Plating
Tin
Depth
1.6mm
Height
0.024inch
Length
3.2mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Circuits
4
Number of Elements
4
Number of Resistors
4
Package Quantity
5000
Packaging
Tape and Reel
Power Per Element
62.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10R
Resistance Tolerance
5%
RoHS Compliant
Yes
Series
CAY16
Technology
THICK FILM
Terminal Pitch
0.8mm
Termination
Convex
Tolerance
5%
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Bourns CAY16-100J4LF Datasheet
Download the complete datasheet for Bourns CAY16-100J4LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

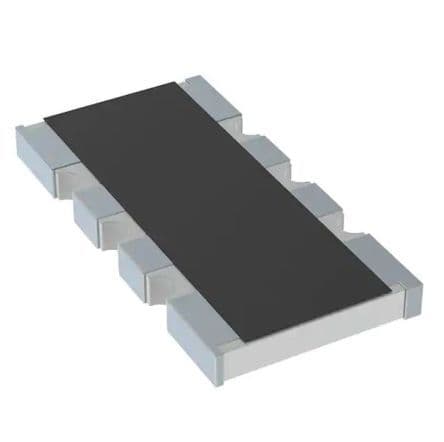

Product Images
