Bourns
CC322522A-1R0K

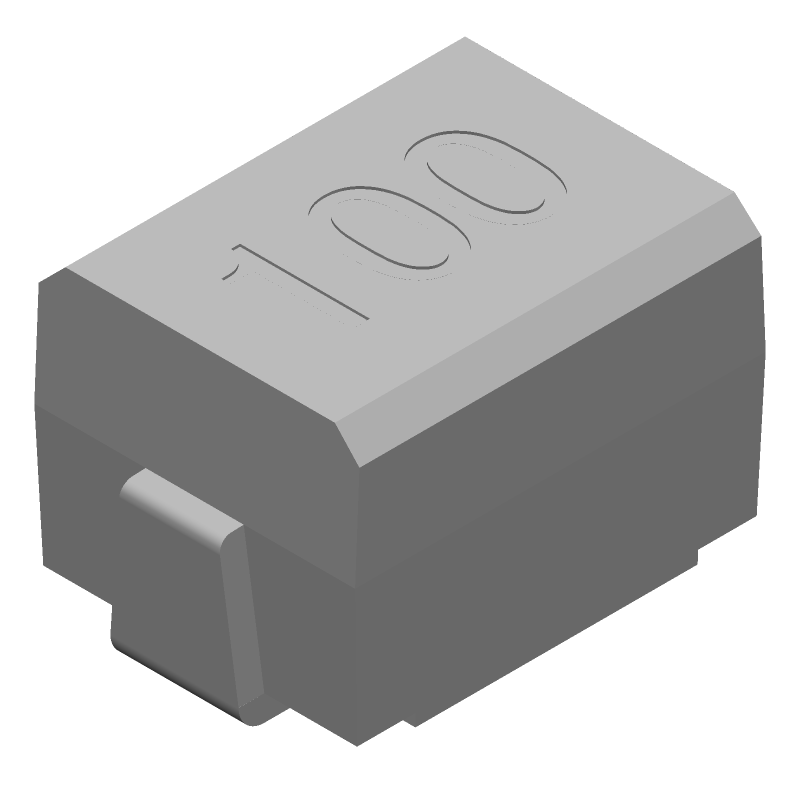

Inductor General Purpose Chip Wirewound 1uH 10% 7.96MHz 8Q-Factor Ferrite 1.45A 0.156Ohm DCR 1210 Automotive T/R
Quick Jump:
Technical Specifications
Bourns CC322522A-1R0K technical specifications.
General
| Max Operating Temperature | 150 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 2.9 |
| Tolerance | 10 |
| Package Width | 2.5 |
| Package Height | 2.2 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 1 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 0.156 |
| Rated Current-Max | 1.45 |
| Test Frequency | 7.96 |
| Self Resonance Frequency | 100 |
| Quality Factor-Min (at L-nom) | 8 |
Compliance
| RoHS | Yes |
| REACH | unknown |
| Military Spec | False |
Datasheet
Bourns CC322522A-1R0K Datasheet
Download the complete datasheet for Bourns CC322522A-1R0K to view detailed technical specifications.
No datasheet is available for this part.
