Technical Specifications
Bourns CD214A-B240LLF technical specifications.
General
| Average Rectified Current | 2A |
| Package/Case | DO-214AC |
| Contact Plating | Tin |
| Forward Current | 2A |
| Max Forward Surge Current (Ifsm) | 25A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 2mA |
| Max Reverse Leakage Current | 2mA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 25A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 25A |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CD214A-B240LLF Datasheet
Download the complete datasheet for Bourns CD214A-B240LLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

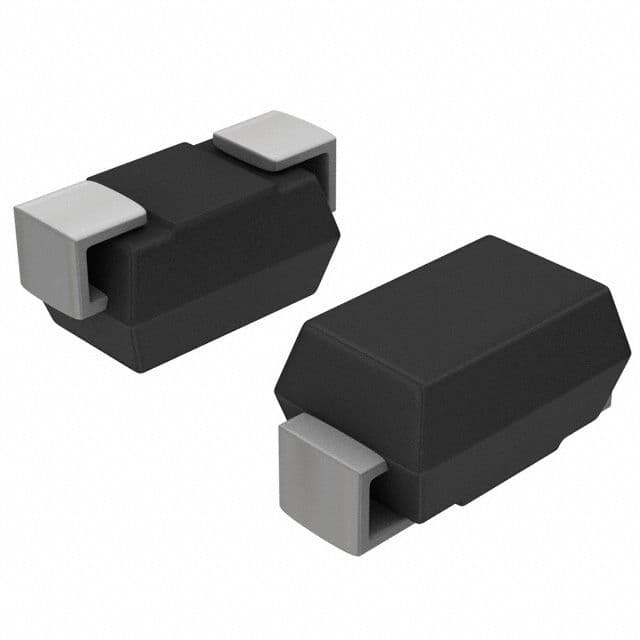

Product Images
