Bidirectional Transient Voltage Suppressor (TVS) diode for surface mount applications. Features a working voltage of 3.3V, a minimum breakdown voltage of 4V, and a maximum breakdown voltage of 6.5V. Offers a clamping voltage of 5V and a peak pulse current rating of 5A. This silicon component operates within a temperature range of -55°C to 125°C and has a low leakage current of 1µA. Packaged in a DFN case with a capacitance of 13pF.
PackageDFN
Capacitance13pF
Voltage Rating3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CDDFN2-T3.3LC technical specifications.
General
Capacitance
13pF
Package/Case
DFN
Clamping Voltage
5V
Depth
0.65mm
Diode Type
ZENER
Direction
Bidirectional
Leakage Current
1uA
Length
1.05mm
Max Breakdown Voltage
6.5V
Min Breakdown Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Surge Current
5A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Operating Supply Voltage
3.8V
Packaging
Tape and Reel
Peak Pulse Current
5A
Polarity
Bidirectional
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
3V
RoHS Compliant
Yes
Termination
SMD/SMT
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Bourns CDDFN2-T3.3LC Datasheet
Download the complete datasheet for Bourns CDDFN2-T3.3LC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

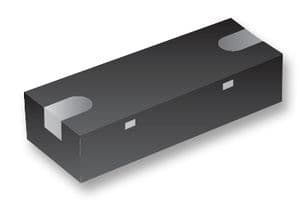

Product Images
