Surface mount fixed inductor featuring 3.3nH inductance with a 5% tolerance, tested at 100MHz. This ceramic core component offers a Q factor of 16 and a maximum DC current rating of 300mA. It has a DC resistance of 0.13 Ohms and operates within a temperature range of -55°C to 125°C. The 0805 case size component is supplied on tape and reel.
Package0805
Current300mA
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CE201210-3N3J technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Core Material
Ceramic
Current
300mA
Current Rating
300mA
DC Current
300mA
DC Resistance (DCR)
130mR
Depth
1.45mm
Height
0.83mm
Height - Seated (Max)
0.041inch
Inductance
3.3nH
Length
0.079inch
Max DC Current
300mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Q Factor
16
Radiation Hardening
No
RoHS Compliant
Yes
Self Resonant Frequency
4GHz
Series
CE201210
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Bourns CE201210-3N3J Datasheet
Download the complete datasheet for Bourns CE201210-3N3J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

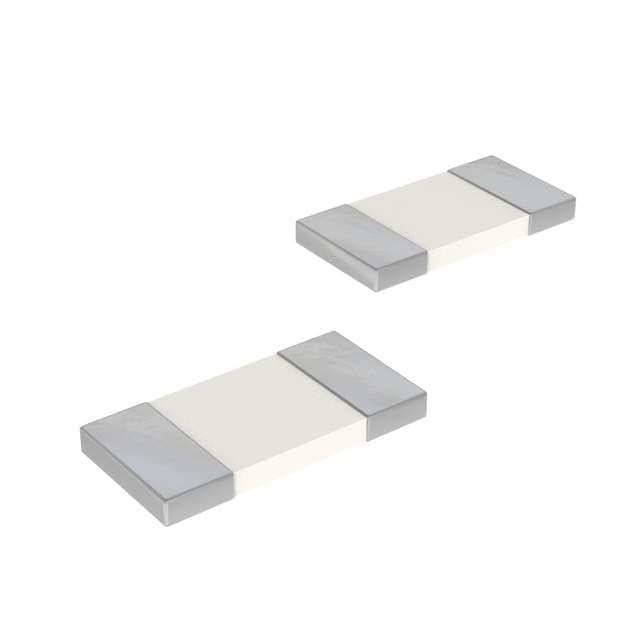

Product Images
