Surface mount varistor with 5.5V DC rated voltage and 4V AC voltage rating. Features 0.05J energy absorption, 1A clamping current, and 19V clamping voltage. Operating temperature range from -55°C to 125°C. Packaged in 0402 (1005 metric) case size with nickel contact plating. RoHS compliant and supplied on tape and reel.
Package0402
Voltage5.5V
Capacitance270pF
Current Rating20A
Quick Jump:
Technical Specifications
Bourns CG0402MLA-5.5MG technical specifications.
General
Capacitance
270pF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Clamping Current
1A
Clamping Voltage
19V
Contact Plating
Nickel
Current Rating
20A
Depth
0.5mm
Energy
0.05J
Length
1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Surge Current
20A
Max Varistor Voltage
9.6V
Min Varistor Voltage
6.4V
Max Voltage Rating (AC)
4V
Max Voltage Rating (DC)
5.5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Operating Supply Voltage
5.5V
Package Quantity
10000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ChipGuard®
Size Code
402
Termination
SMD/SMT
Tolerance
20%
Varistor Voltage
9.6V
Voltage
5.5V
Voltage Rating (AC)
4V
DC Rated Voltage
5.5V
Voltage Tolerance
20%
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Bourns CG0402MLA-5.5MG Datasheet
Download the complete datasheet for Bourns CG0402MLA-5.5MG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

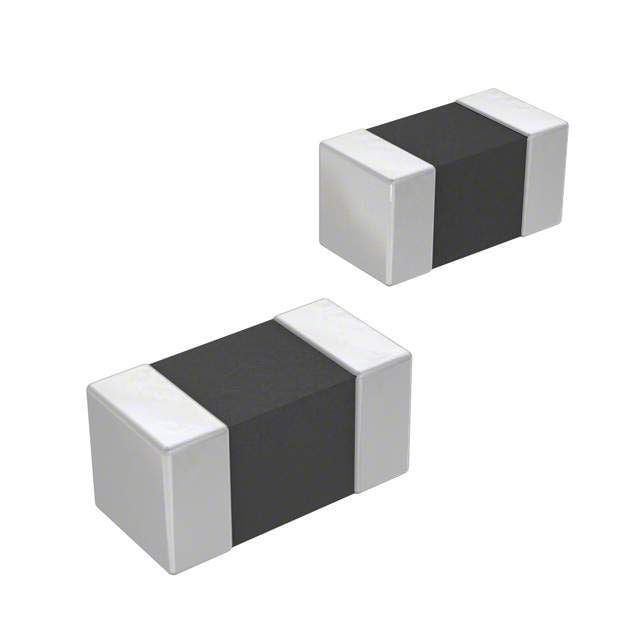

Product Images
