Surface mount Metal Oxide Varistor (MOV) for circuit protection. Features a 4VAC/5.5VDC voltage rating, 30A current rating, and 19V clamping voltage. Operates across a -55°C to 125°C temperature range with a 270pF capacitance. Packaged in a 0603 (1608 metric) SMD case, this RoHS compliant component offers 0.1J energy absorption.
Package0603
Voltage5.5V
Capacitance270pF
Current Rating30A
Quick Jump:
Technical Specifications
Bourns CG0603MLA-5.5ME technical specifications.
General
Capacitance
270pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Clamping Current
1A
Clamping Voltage
19V
Contact Plating
Nickel
Current Rating
30A
Depth
0.8mm
Energy
0.1J
Length
1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Surge Current
30A
Max Varistor Voltage
9.6V
Min Varistor Voltage
6.4V
Max Voltage Rating (AC)
4V
Max Voltage Rating (DC)
5.5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Operating Supply Voltage
5.5V
Package Quantity
4000
Packaging
Tape and Reel
Peak Pulse Current
30A
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MLA
Size Code
0603
Termination
SMD/SMT
Tolerance
20%
Varistor Voltage
9.6V
Voltage
5.5V
Voltage Rating (AC)
4V
DC Rated Voltage
5.5V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Bourns CG0603MLA-5.5ME Datasheet
Download the complete datasheet for Bourns CG0603MLA-5.5ME to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

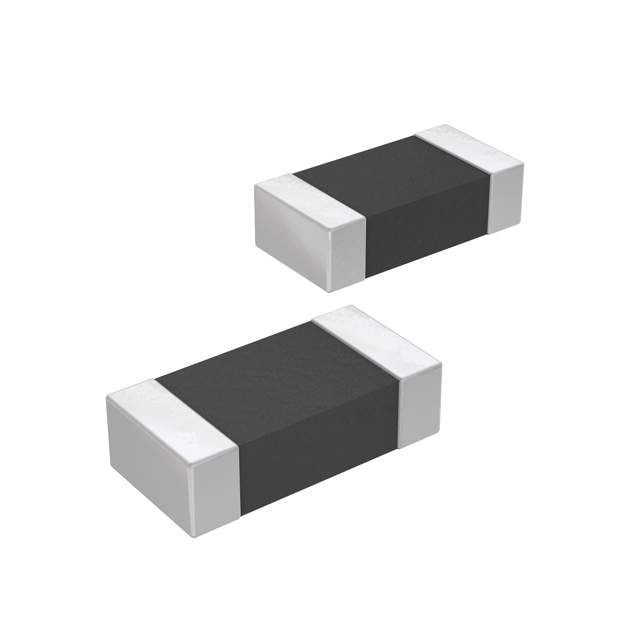

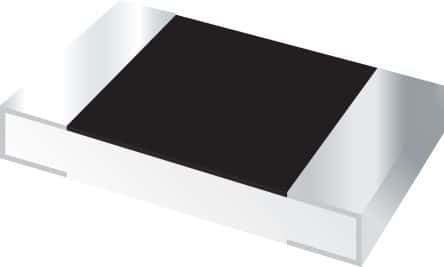

Product Images
