Surface mount transient voltage suppressor diode with a 3.3V working voltage and 25V clamping voltage. Features 0.5pF capacitance and 5nA leakage current, housed in a compact 0603 (1608 metric) case. Designed for ESD protection with tin contact plating and a single channel configuration. Operates across a -40°C to 85°C temperature range and is supplied in tape and reel packaging.
Package0603
Voltage3.3V
Capacitance0.5pF
Voltage Rating3.3V
Quick Jump:
Technical Specifications
Bourns CG0603MLC-3.3LE technical specifications.
General
Capacitance
0.5pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Clamping Voltage
25V
Contact Plating
Tin
Current Rating
5nA
Depth
0.8mm
Leakage Current
5nA
Length
1.6mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
3.3V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Operating Supply Voltage
3.3V
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MLC
Termination
SMD/SMT
Voltage
3.3V
DC Rated Voltage
3.3V
Width
0.8mm
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Bourns CG0603MLC-3.3LE Datasheet
Download the complete datasheet for Bourns CG0603MLC-3.3LE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

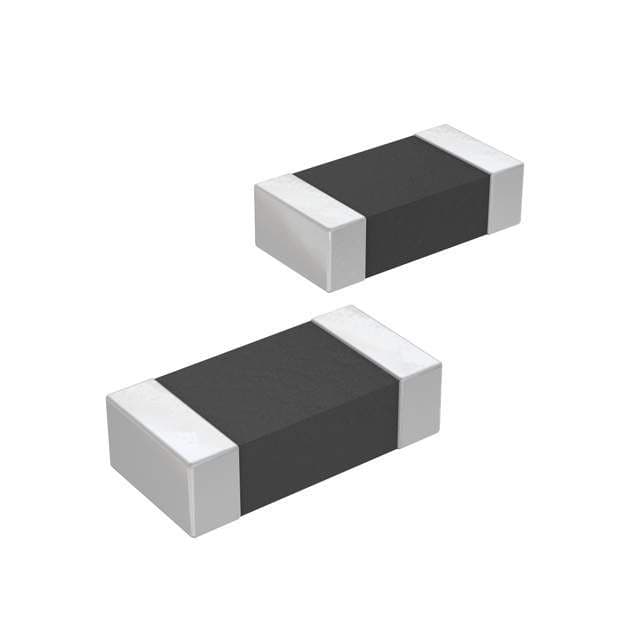

Product Images
