Bourns
CM322522-2R2K
Inductor General Purpose Chip Wirewound 2.2uH 10% 7.96MHz 30Q-Factor Ferrite 0.19A 0.95Ohm DCR 1210 T/R
Package1210
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Bourns CM322522-2R2K technical specifications.
General
Package/Case
1210
Core Material
Ferrite
DC Resistance (DCR)
950mR
Height
2.2mm
Inductance
2.2uH
Length
2.9mm
Max DC Current
190mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tape and Reel
Q Factor
30
Radiation Hardening
No
RoHS Compliant
No
Self Resonant Frequency
80MHz
Series
CM322522
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
7.96MHz
Tolerance
10%
Weight
0.000564oz
Width
2.5mm
Compliance
RoHS
Not CompliantNo
Datasheet
Bourns CM322522-2R2K Datasheet
Download the complete datasheet for Bourns CM322522-2R2K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

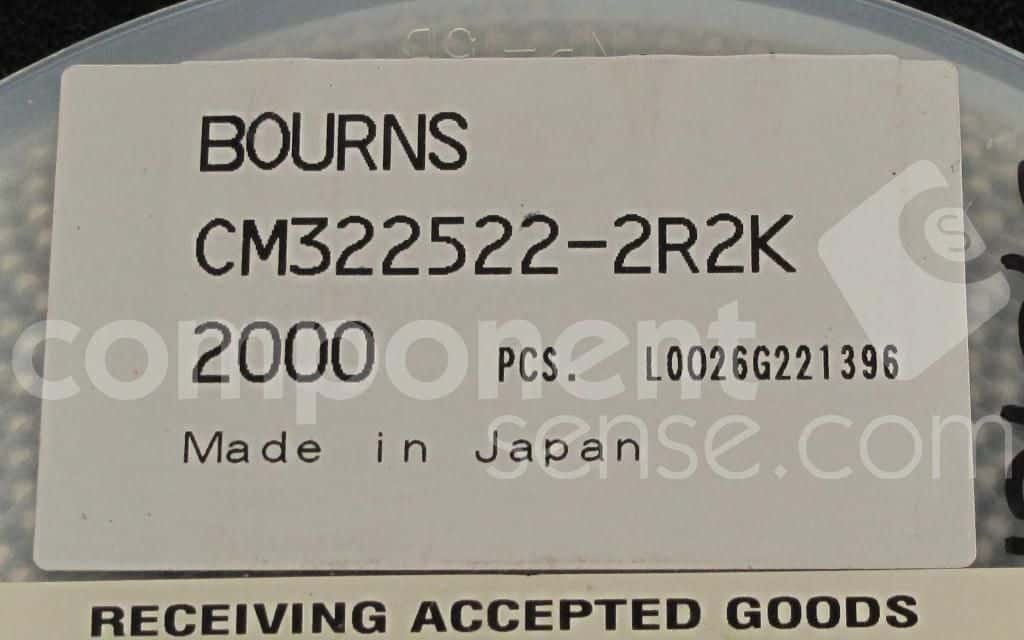

Product Images
