Technical Specifications

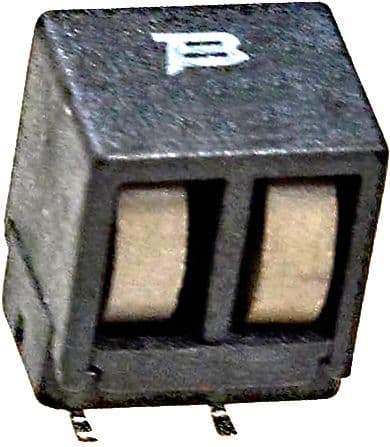

Bourns CMF-SDP25A-2 technical specifications.
General
Package/Case
SMD/SMT
Height
10.2mm
Hold Current
130mA
Length
8.75mm
Max Current Rating
2.8A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
220V
Operating Supply Voltage
230V
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CMF-SDP
Time to Trip
300ms
Trip Current
260mA
Voltage Rating
230V
Voltage Rating (AC)
230V
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Bourns CMF-SDP25A-2 Datasheet
Download the complete datasheet for Bourns CMF-SDP25A-2 to view detailed technical specifications.
