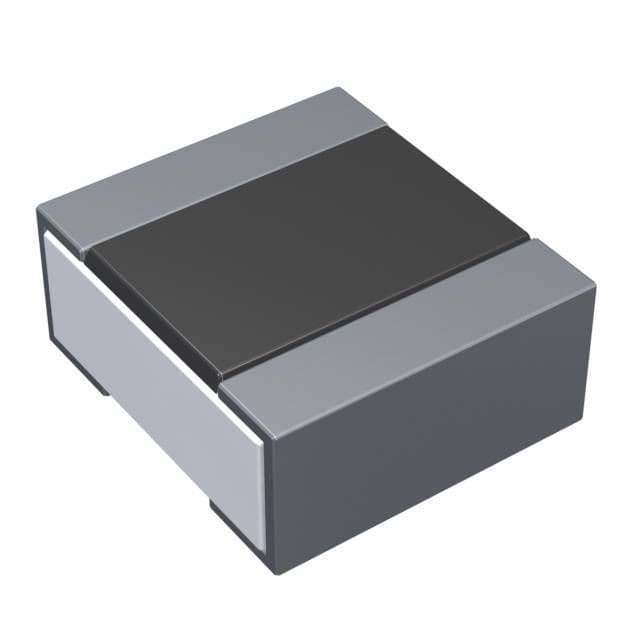

![SMD Chip Resistor, 82 kOhm, ± 1%, 63 mW, 0402 [1005 Metric], Thick Film, General Purpose](https://static.datasheets.com/image/25881788-bourns-cr0402-fx-8202glf-image.jpg)
Quick Jump:
Technical Specifications
Bourns CR0402-FX-8202GLF technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Contact Plating | Tin |
| Height | 0.35mm |
| Length | 1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 63mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 82kR |
| RoHS Compliant | Yes |
| Series | CR0402 |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CR0402-FX-8202GLF Datasheet
Download the complete datasheet for Bourns CR0402-FX-8202GLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
