Package0603
Resistance3.3kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications

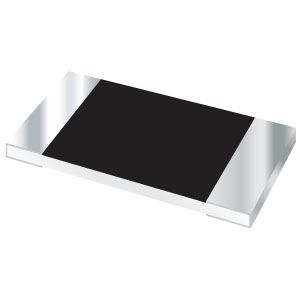

Bourns CR0603-JW-332E technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Height | 0.45mm |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Resistance | 3.3kR |
| RoHS Compliant | No |
| Series | CR0603 |
| Termination | SMD/SMT |
| Thickness | 457um |
| Tolerance | 5% |
| Voltage Rating | 50V |
| Width | 0.8mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Bourns CR0603-JW-332E Datasheet
Download the complete datasheet for Bourns CR0603-JW-332E to view detailed technical specifications.
No datasheet is available for this part.
