Technical Specifications
Bourns CR2010-J/-1R2ELF technical specifications.
General
| Case Code (Imperial) | 2010 |
| Case Code (Metric) | 5025 |
| Package/Case | 2010 |
| Contact Plating | Tin |
| Height | 0.6mm |
| Length | 5mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 1.2R |
| RoHS Compliant | Yes |
| Series | CR2010 |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 200V |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CR2010-J/-1R2ELF Datasheet
Download the complete datasheet for Bourns CR2010-J/-1R2ELF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

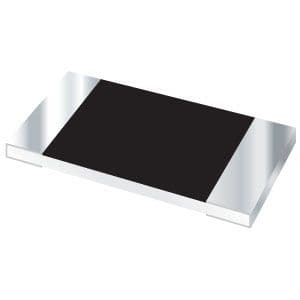

Product Images
