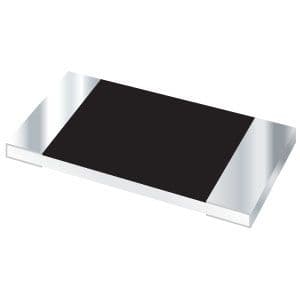

![SMD Chip Resistor, 10 Ohm, ± 5%, 1 W, 2512 [6332 Metric], Thick Film, General Purpose](https://static.datasheets.com/image/22821264-bourns-cr2512-jw-100elf-image.jpg)
Quick Jump:
Technical Specifications
Bourns CR2512-JW-100ELF technical specifications.
General
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6332 |
| Package/Case | 2512 |
| Construction | Rectangular |
| Depth | 3.1mm |
| Height | 0.03inch |
| Length | 6.3mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 1W |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Resistance | 10R |
| RoHS Compliant | Yes |
| Series | CR2512 |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 200V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CR2512-JW-100ELF Datasheet
Download the complete datasheet for Bourns CR2512-JW-100ELF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
