Technical Specifications
Bourns CRF2512-JZ-R020ELF technical specifications.
General
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Package/Case | 2512 |
| Features | Moisture Resistant, Automotive AEC-Q200 |
| Height | 0.031inch |
| Length | 0.252inch |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Resistance | 20mR |
| RoHS Compliant | Yes |
| Series | CRF |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Weight | 0.001429oz |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CRF2512-JZ-R020ELF Datasheet
Download the complete datasheet for Bourns CRF2512-JZ-R020ELF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

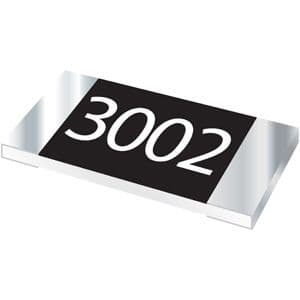

Product Images
