Surface mount fixed inductor with 33nH inductance and 5% tolerance, designed for RF applications. Features a ceramic core, 0.4A current rating, and 0.35 Ohm DC resistance. Operates across a -55°C to 125°C temperature range and boasts a Q factor of 24 at 250MHz. Packaged in a 0402 (1005 metric) case, supplied on tape and reel.
Package0402
Current Rating400mA
MountingSurface Mount
Inductance33nH
Quick Jump:
Technical Specifications
Bourns CW100505-33NJ technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Core Material | Ceramic |
| Current Rating | 400mA |
| DC Resistance (DCR) | 350mR |
| Depth | 0.65mm |
| Height | 0.5mm |
| Height - Seated (Max) | 0.024inch |
| Inductance | 33nH |
| Inductance Tolerance | 5% |
| Length | 0.039inch |
| Max DC Current | 400mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Q Factor | 24 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 2.35GHz |
| Series | CW100505 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 250MHz |
| Tolerance | 5% |
| Width | 0.55mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CW100505-33NJ Datasheet
Download the complete datasheet for Bourns CW100505-33NJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

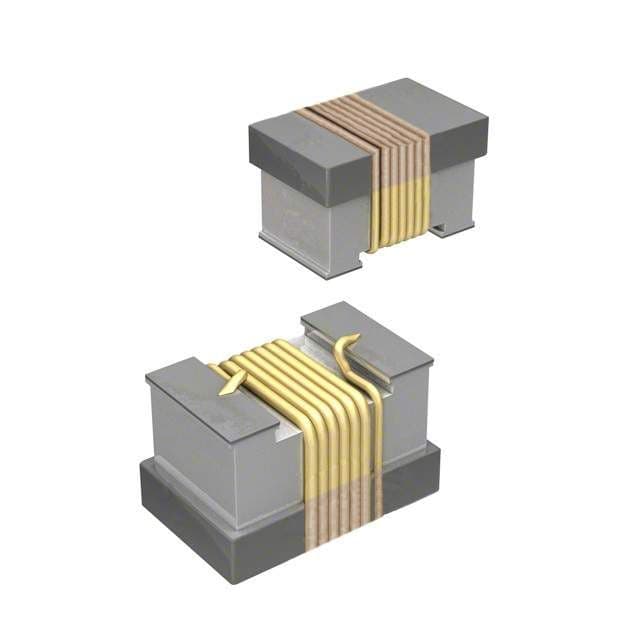

Product Images
