Bourns
CW105550A-3N9J

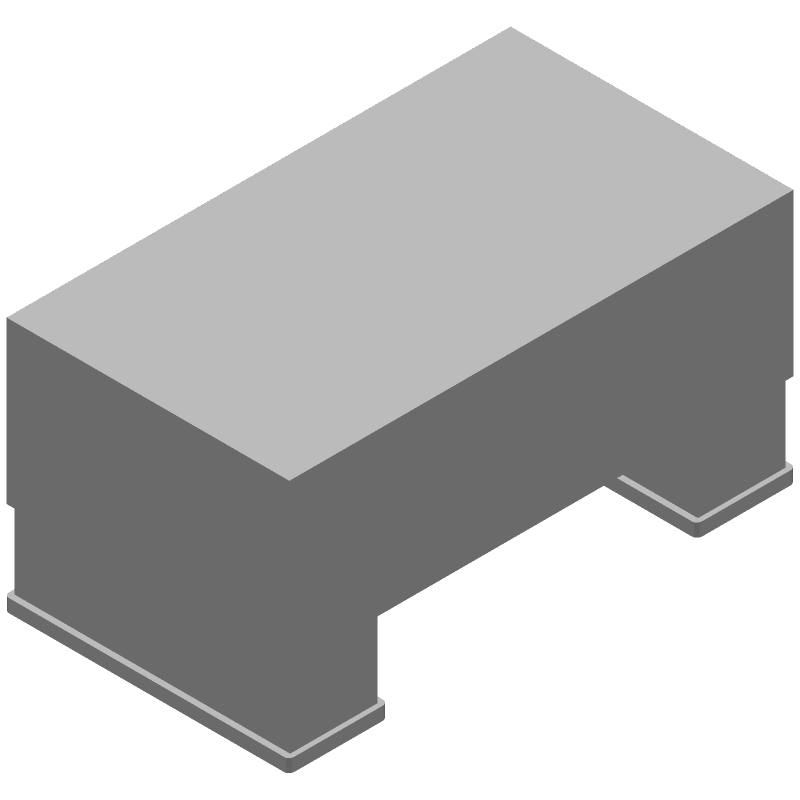

Inductor RF Wirewound 0.0039uH 5% 250MHz 20Q-Factor Ceramic 0.84A 0.066Ohm DCR 0402 Automotive T/R
Quick Jump:
Technical Specifications
Bourns CW105550A-3N9J technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 1 |
| Tolerance | 5 |
| Package Width | 0.55 |
| Package Height | 0.5 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 0.0039 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 0.066 |
| Rated Current-Max | 0.84 |
| Test Frequency | 250 |
| Self Resonance Frequency | 5800 |
| Quality Factor-Min (at L-nom) | 20 |
Compliance
| REACH | unknown |
| Military Spec | False |
Datasheet
Bourns CW105550A-3N9J Datasheet
Download the complete datasheet for Bourns CW105550A-3N9J to view detailed technical specifications.
No datasheet is available for this part.
