Bourns
CW161009A-5N6J

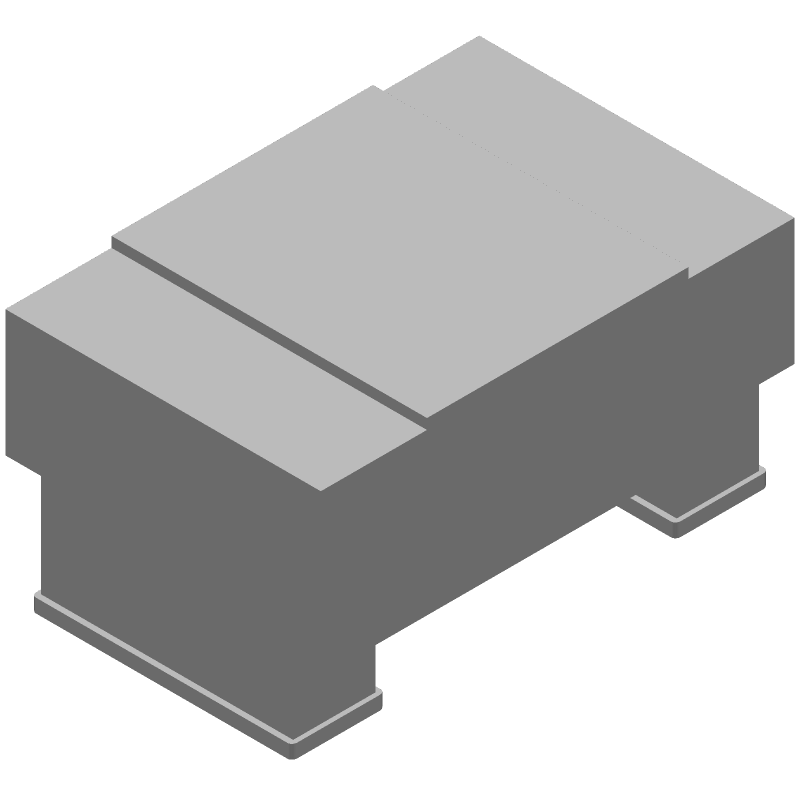

Inductor RF Wirewound 0.0056uH 5% 250MHz 16Q-Factor Ceramic 0.7A 0.19Ohm DCR 0603 Automotive T/R
Quick Jump:
Technical Specifications
Bourns CW161009A-5N6J technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 1.65 |
| Tolerance | 5 |
| Package Width | 1.15 |
| Package Height | 0.9 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 0.0056 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 0.19 |
| Rated Current-Max | 0.7 |
| Test Frequency | 250 |
| Self Resonance Frequency | 5500 |
| Quality Factor-Min (at L-nom) | 16 |
Compliance
| REACH | unknown |
| Military Spec | False |
Datasheet
Bourns CW161009A-5N6J Datasheet
Download the complete datasheet for Bourns CW161009A-5N6J to view detailed technical specifications.
No datasheet is available for this part.
