Surface mount PTC resettable fuse with 200mA hold current and 500mA trip current. Features a 9VDC operating voltage and 40A maximum interrupt current. This component offers 500mW power dissipation and a resistance of 3.5 Ohms. Encased in an 0805 (2012 metric) SMD package, it is designed for surface mount PCB applications and is RoHS compliant.
Package0805
Resistance3.5R
Voltage Rating9V
Current Rating40A
Quick Jump:
Technical Specifications
Bourns MF-PSMF020X-2 technical specifications.
General
| Approvals | UL |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Current Rating | 40A |
| Height | 0.85mm |
| Hold Current | 200mA |
| Length | 2.3mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount, PCB |
| Operating Supply Voltage | 9V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 3.5R |
| RoHS Compliant | Yes |
| Series | MF-PSMF |
| Terminal Material | Gold |
| Termination | SMD/SMT |
| Time to Trip | 20ms |
| Trip Current | 500mA |
| Voltage Rating | 9V |
| DC Rated Voltage | 9V |
| Width | 1.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-PSMF020X-2 Datasheet
Download the complete datasheet for Bourns MF-PSMF020X-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

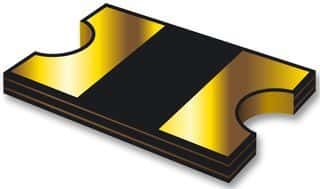

Product Images
