Radial PTC resettable fuse with 650mA hold current and 1.3A trip current. Features a 60V DC operating voltage, 40A maximum interrupt current, and 900mW power dissipation. Constructed with polymer and epoxy body material, it offers a resistance of 480mΩ and a time to trip of 5.3 seconds. This lead-free component is UL94 V-0 flammability rated and suitable for through-hole PCB mounting.
PackageRadial
Resistance480mR
Voltage Rating60V
Current Rating40A
Quick Jump:
Technical Specifications
Bourns MF-R065 technical specifications.
General
Approvals
UL, CSA, TUV
Body Height
15.2mm
Body Length
9.7mm
Body Material
Polymer, Epoxy
Package/Case
Radial
Current Rating
40A
Diameter
9.7mm
Flammability Rating
UL94 V-0
Height
15.2mm
Hold Current
650mA
Lead Diameter
0.51mm
Lead Free
Lead Free
Lead Length
7.6mm
Lead Pitch
5.1mm
Max Current Rating
40A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Operating Supply Voltage
60V
Package Quantity
500
Packaging
Bulk
Power Dissipation
900mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
480mR
RoHS Compliant
Yes
Series
Multifuse®, MF-R
Termination
Radial
Time to Trip
5.3s
Trip Current
1.3A
Voltage Rating
60V
DC Rated Voltage
60V
Width
9.7mm
Wire/Cable Diameter
0.51mm
Compliance
RoHS
Compliant
Datasheet
Bourns MF-R065 Datasheet
Download the complete datasheet for Bourns MF-R065 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

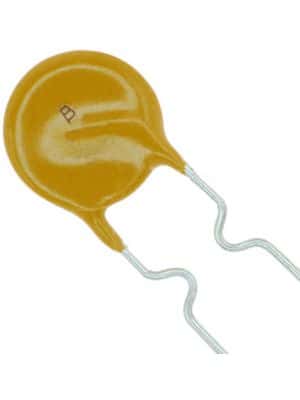

Product Images
