Surface mount ferrite chip for data line EMI/RFI filtering. Features 1 line, 2A current rating, and 60 Ohm impedance at 100MHz. Housed in a 0805 (2012 metric) case with ferrite core material. Operating temperature range from -55°C to 125°C. HALOGEN FREE and ROHS COMPLIANT.
Package0603
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns MH1608-600Y technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0603 |
| Core Material | Ferrite |
| Current Rating | 2A |
| DC Resistance (DCR) | 100mR |
| Depth | 1mm |
| Height | 0.043inch |
| Impedance | 60R |
| Length | 0.079inch |
| Max Current Rating | 3A |
| Max DC Current | 3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RMS Current (Irms) | 3A |
| RoHS Compliant | Yes |
| Series | MH |
| Series Resistance | 40mR |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MH1608-600Y Datasheet
Download the complete datasheet for Bourns MH1608-600Y to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

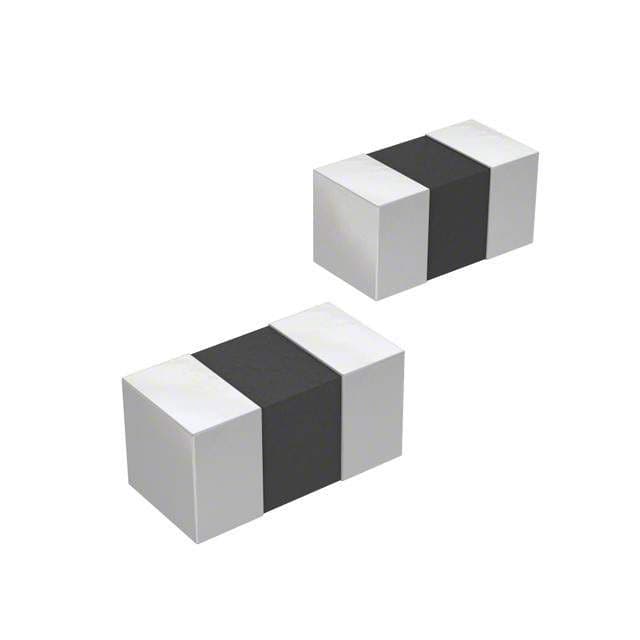

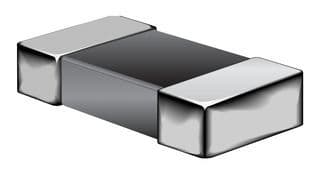

Product Images
