General purpose, surface mount inductor with 1mH inductance and 10% tolerance. Features a ferrite core, 215mΩ DC resistance, and a maximum DC current rating of 2.5A. Operates across a wide temperature range from -55°C to 105°C. This unshielded, RoHS compliant component is supplied in bulk packaging.
PackageNonstandard
MountingSurface Mount
Inductance1mH
Quick Jump:
Technical Specifications
Bourns PM2120-102K-RC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
215mR
Depth
25.4mm
Height
20.83mm
Inductance
1mH
Inductance Tolerance
10%
Lead Free
Lead Free
Length
30.5mm
Max DC Current
2.5A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
77
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
2.5A
RoHS Compliant
Yes
Series
PM2120
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
10%
Width
25.4mm
Compliance
RoHS
Compliant
Datasheet
Bourns PM2120-102K-RC Datasheet
Download the complete datasheet for Bourns PM2120-102K-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

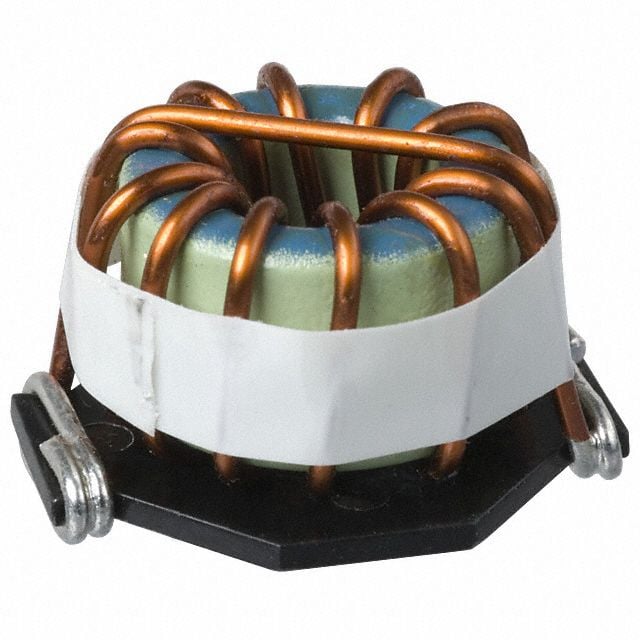

Product Images
