General purpose fixed inductor with 220µH inductance and 10% tolerance. Features a ferrite core, surface mount termination, and a maximum DC current rating of 5A. Operating temperature range is -55°C to 105°C, with a DC resistance of 52mΩ. Unshielded, lead-free, and RoHS compliant.
PackageNonstandard
MountingSurface Mount
Inductance220uH
Quick Jump:
Technical Specifications
Bourns PM2120-221K-RC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Current
5A
DC Resistance (DCR)
52mR
Depth
25.4mm
Height
21.08mm
Inductance
220uH
Inductance Tolerance
10%
Lead Free
Lead Free
Length
30.5mm
Max DC Current
5A
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
77
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
5A
RoHS Compliant
Yes
Series
PM2120
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
10%
Width
25.4mm
Compliance
RoHS
Compliant
Datasheet
Bourns PM2120-221K-RC Datasheet
Download the complete datasheet for Bourns PM2120-221K-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

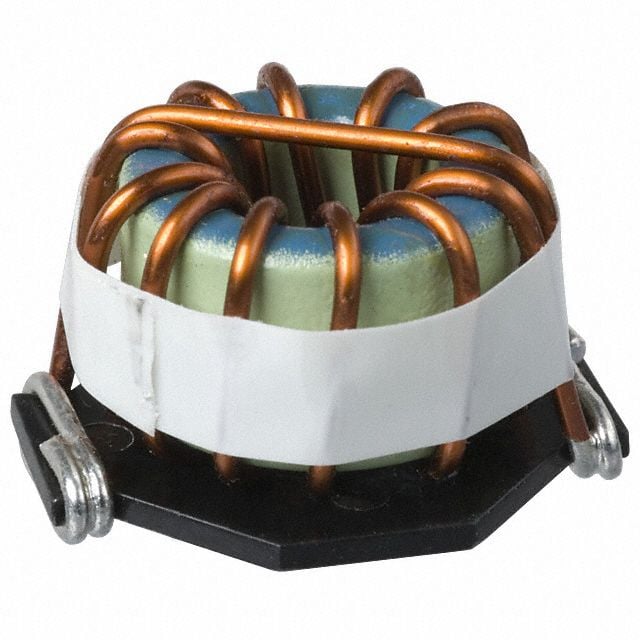

Product Images
