Bourns
PM43-2R2M-RC
Inductor Power Bobbin Core 2.2uH 20% 1KHz 28Q-Factor Ferrite 2.6A 0.047Ohm DCR T/R
PackageNonstandard
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Bourns PM43-2R2M-RC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
47mR
Depth
4.3mm
Height
3.2mm
Inductance
2.2uH
Length
4.5mm
Max DC Current
2.6A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tape and Reel
Q Factor
28
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
3.9A
Self Resonant Frequency
80MHz
Series
PM43
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
20%
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Bourns PM43-2R2M-RC Datasheet
Download the complete datasheet for Bourns PM43-2R2M-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

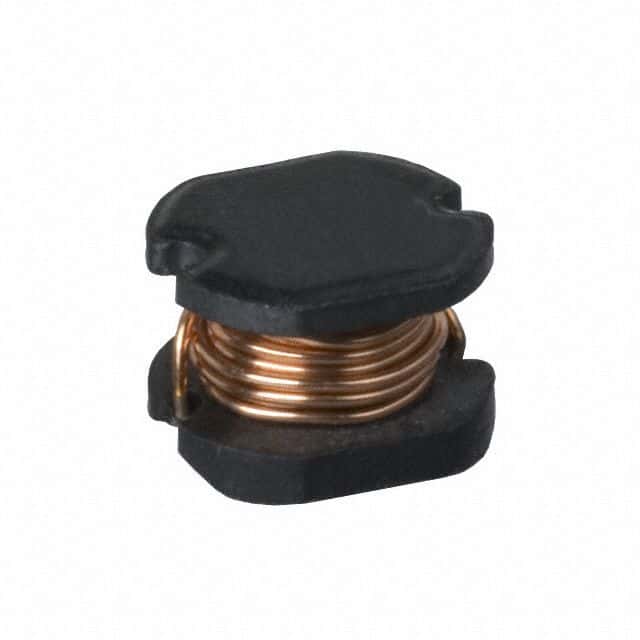

Product Images
