Technical Specifications

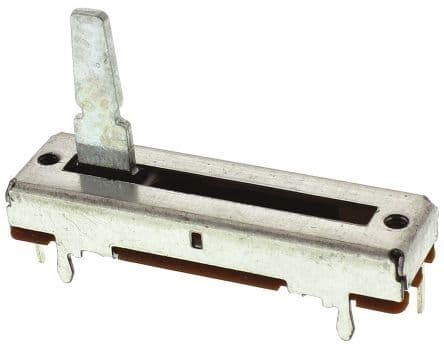

Bourns PTA2043-2015DPB103 technical specifications.
General
| Depth | 9mm |
| Height | 5.5mm |
| Length | 35mm |
| Max Operating Temperature | 50°C |
| Military Standard | Not |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 100mW |
| Mount | Through Hole |
| Number of Turns | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 10kR |
| RoHS Compliant | Yes |
| Series | PTA |
| Taper | Linear |
| Technology | CARBON FILM |
| Termination | Pin |
| Tolerance | 20% |
| Type | Potentiometer |
Compliance
| RoHS | Compliant |
Datasheet
Bourns PTA2043-2015DPB103 Datasheet
Download the complete datasheet for Bourns PTA2043-2015DPB103 to view detailed technical specifications.
No datasheet is available for this part.
