PackageDPAK
Resistance2.5R
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns PWR163S-25-2R50J technical specifications.
General
Package/Case
DPAK
Depth
7.24mm
Features
Automotive AEC-Q200
Height
2.79mm
Length
8.13mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
25W
Mount
Surface Mount
Number of Terminations
2
Packaging
Rail/Tube
Ratings
AEC-Q200
Reach SVHC Compliant
No
Resistance
2.5R
Resistance Tolerance
5%
Resistor Type
Thick Film
Series
PWR163
Technology
THICK FILM
Termination
Solder
Tolerance
5%
Voltage Rating
250V
DC Rated Voltage
250V
Width
8.22mm
Compliance
RoHS
Not Compliant
Datasheet
Bourns PWR163S-25-2R50J Datasheet
Download the complete datasheet for Bourns PWR163S-25-2R50J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

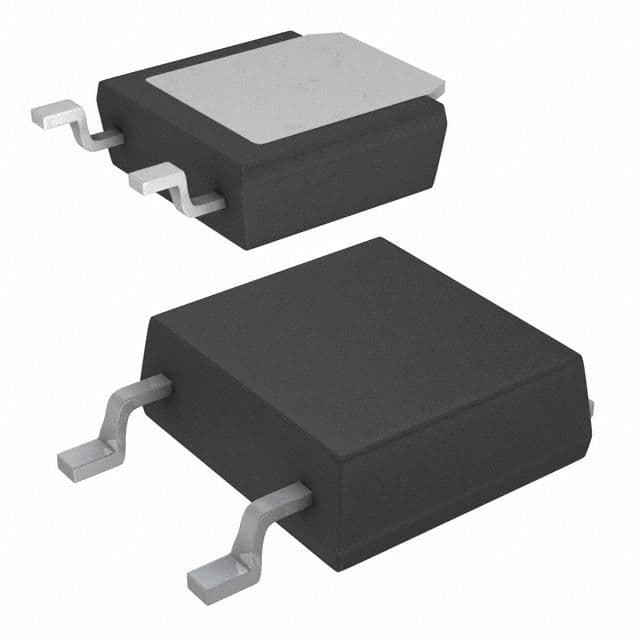

Product Images
