Surface mount general purpose inductor with 22µH inductance and 20% tolerance. Features a ferrite core, 1.5A DC current rating, and 110mΩ DC resistance. Operates within a temperature range of -40°C to 125°C. Unshielded, single-element design with tape and reel packaging.
PackageNonstandard
Resistance110MR
Current Rating1.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns SDR0805-220ML technical specifications.
General
Package/Case
Nonstandard
Coil Resistance
110mR
Core Material
Ferrite
Current Rating
1.5A
DC Current
1.5A
DC Resistance (DCR)
110mR
Diameter
7.8mm
Height
5.3mm
Height - Seated (Max)
0.209inch
Inductance
22uH
Inductance Tolerance
20%
Length
0.307inch
Max DC Current
1.5A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Q Factor
20
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
110MR
RMS Current (Irms)
1.5A
RoHS Compliant
Yes
Sample Rate (Hz)
1kHz
Saturation Current
2.3A
Self Resonant Frequency
13MHz
Series
SDR0805
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
20%
Width
0.307inch
Compliance
RoHS
Compliant
Datasheet
Bourns SDR0805-220ML Datasheet
Download the complete datasheet for Bourns SDR0805-220ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

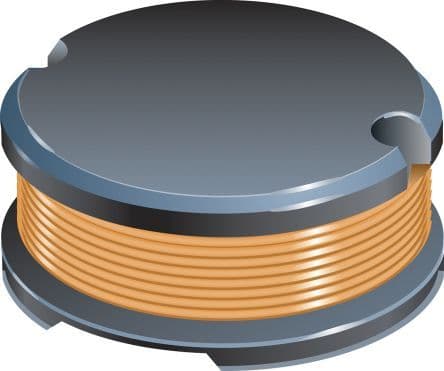

Product Images
