General purpose, surface mount inductor with 1mH inductance and 10% tolerance. Features a ferrite core, 300mA current rating, and 3.9 Ohm DC resistance. Operates from -40°C to 125°C, with a saturation current of 350mA. Packaged in tape and reel.
PackageNonstandard
Resistance3.9R
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns SDR1005-102KL technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
300mA
DC Current
300mA
DC Resistance (DCR)
3.9R
Depth
10.2mm
Height
5mm
Height - Seated (Max)
0.197inch
Inductance
1mH
Inductance Tolerance
10%
Lead Free
Lead Free
Lead Pitch
7.6mm
Length
12.7mm
Max DC Current
300mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
600
Packaging
Tape and Reel
Q Factor
81
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
3.9R
RMS Current (Irms)
300mA
RoHS Compliant
Yes
Sample Rate (Hz)
1kHz
Saturation Current
350mA
Self Resonant Frequency
2MHz
Series
SDR1005
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
10%
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Bourns SDR1005-102KL Datasheet
Download the complete datasheet for Bourns SDR1005-102KL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

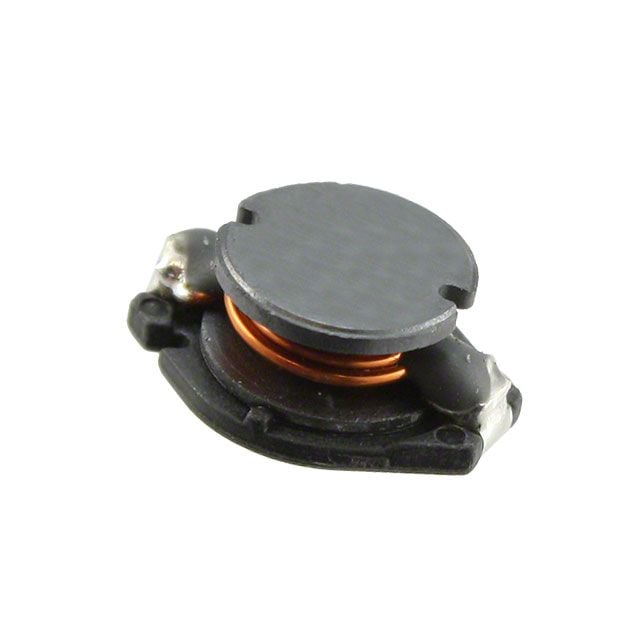

Product Images
