General purpose, surface mount inductor featuring 3.3µH inductance with a 20% tolerance. This ferrite-core component offers a 5A current rating and a DC resistance of 15mΩ. Operating within a temperature range of -40°C to 125°C, it is supplied in tape and reel packaging.
PackageNonstandard
Resistance15MR
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns SDR1005-3R3ML technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
5A
DC Current
5A
DC Resistance (DCR)
15mR
Depth
10.2mm
Height
5mm
Height - Seated (Max)
0.197inch
Inductance
3.3uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
12.7mm
Max DC Current
5A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
600
Packaging
Tape and Reel
Q Factor
50
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
15MR
RMS Current (Irms)
5A
RoHS Compliant
Yes
Sample Rate (Hz)
1kHz
Saturation Current
6.4A
Self Resonant Frequency
54MHz
Series
SDR1005
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
20%
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Bourns SDR1005-3R3ML Datasheet
Download the complete datasheet for Bourns SDR1005-3R3ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

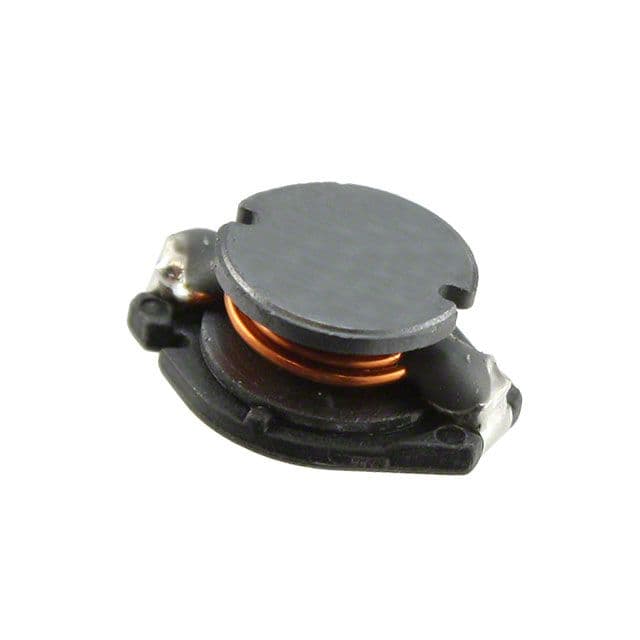

Product Images
