Unidirectional TVS Diode, designed for transient voltage suppression. Features a 5V reverse standoff voltage and a 6.4V minimum breakdown voltage, with a maximum breakdown voltage of 7V. Offers a clamping voltage of 9.2V and a peak pulse power dissipation of 400W. This surface mount component, packaged in DO-214AC, operates within a temperature range of -55°C to 150°C and provides ESD protection.
PackageDO-214AC
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Bourns SMAJ5.0A technical specifications.
General
| Package/Case | DO-214AC |
| Clamping Voltage | 9.2V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 2.42mm |
| Leakage Current | 800uA |
| Length | 4.57mm |
| Max Breakdown Voltage | 7V |
| Min Breakdown Voltage | 6.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400W |
| Max Reverse Leakage Current | 800uA |
| Max Surge Current | 40A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 3.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 43.5A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6.4V |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Series | SMAJ |
| Termination | SMD/SMT |
| Width | 2.92mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SMAJ5.0A Datasheet
Download the complete datasheet for Bourns SMAJ5.0A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

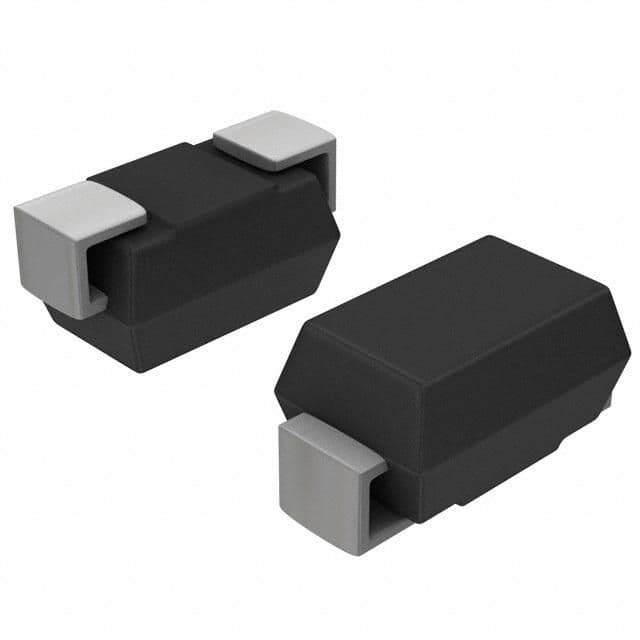

Product Images
