Bidirectional TVS Diode, Surface Mount, DO-214AC package. Features 6.5V reverse standoff voltage with a breakdown voltage range of 7.22V to 7.98V. Offers 400W peak pulse power dissipation and 40A max surge current handling. Operates across a wide temperature range from -55°C to 150°C.
PackageDO-214AC
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Bourns SMAJ6.5CA technical specifications.
General
| Package/Case | DO-214AC |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Max Breakdown Voltage | 7.98V |
| Min Breakdown Voltage | 7.22V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400W |
| Max Reverse Leakage Current | 1mA |
| Max Surge Current | 40A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Operating Supply Voltage | 3.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 35.7A |
| Peak Pulse Power | 400W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 6.5V |
| RoHS Compliant | Yes |
| Series | SMAJ |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SMAJ6.5CA Datasheet
Download the complete datasheet for Bourns SMAJ6.5CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

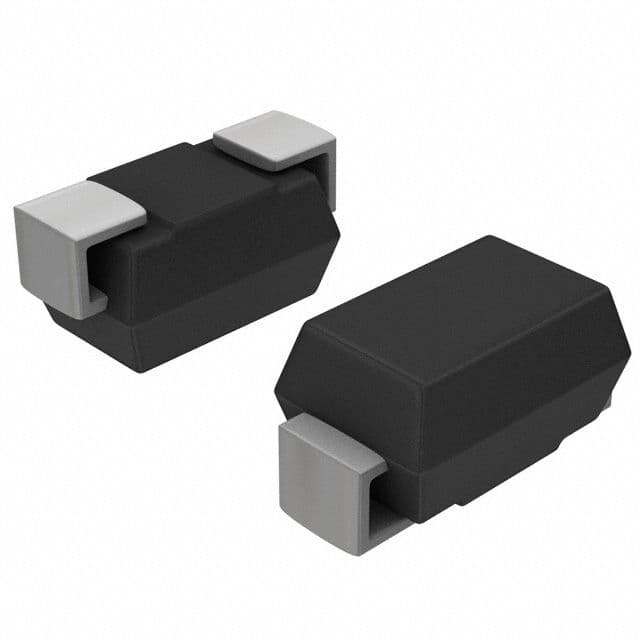

Product Images
