Bidirectional Transient Voltage Suppressor (TVS) diode, 400W peak pulse power, designed for surface mount applications in a DO-214AC package. Features a 7V reverse standoff voltage and a 12V clamping voltage, with a breakdown voltage range of 7.78V to 8.6V. Operates across a wide temperature range from -55°C to 150°C, handling a peak pulse current of 33.3A and a max surge current of 40A. This silicon-based, single-element device offers bidirectional protection and is RoHS compliant.
PackageDO-214AC
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Bourns SMAJ7.0CA technical specifications.
General
| Package/Case | DO-214AC |
| Clamping Voltage | 12V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Leakage Current | 400uA |
| Max Breakdown Voltage | 8.6V |
| Min Breakdown Voltage | 7.78V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 40A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.5V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Peak Pulse Current | 33.3A |
| Peak Pulse Power | 400W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 7.78V |
| Reverse Standoff Voltage | 7V |
| RoHS Compliant | Yes |
| Series | SMAJ |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SMAJ7.0CA Datasheet
Download the complete datasheet for Bourns SMAJ7.0CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

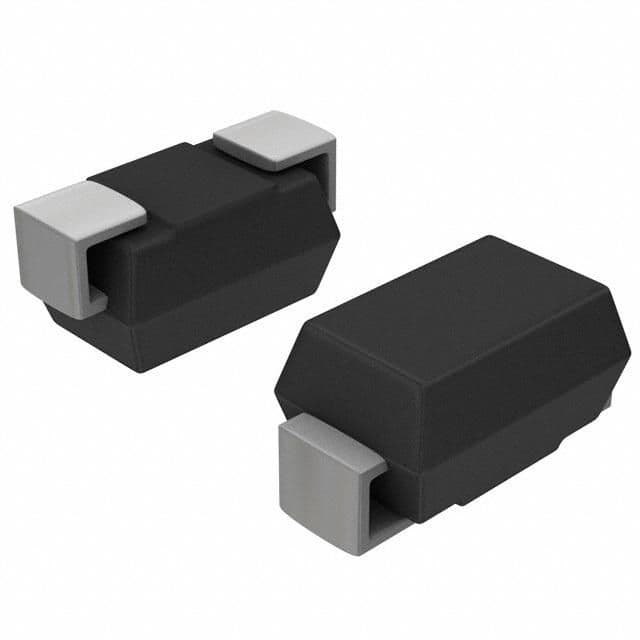

Product Images
