Unidirectional Transient Voltage Suppressor (TVS) diode, 3kW peak pulse power, designed for surface mount applications in a DO-214AB package. Features a reverse standoff voltage of 12V, with breakdown voltage ranging from 13.3V to 14.7V. Offers a maximum surge current of 300A and a peak pulse current of 150.6A. Operates across a wide temperature range of -55°C to 150°C, with a maximum reverse leakage current of 5uA. This silicon-based, single-element device is RoHS compliant.
PackageDO-214AB
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Bourns SMLJ12A technical specifications.
General
Package/Case
DO-214AB
Diode Type
ZENER
Direction
Unidirectional
Max Breakdown Voltage
14.7V
Min Breakdown Voltage
13.3V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
3kW
Max Reverse Leakage Current
5uA
Max Surge Current
300A
Mount
Surface Mount
Number of Channels
1
Number of Unidirectional Channels
1
Operating Supply Voltage
3.5V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
150.6A
Peak Pulse Power
3kW
Polarity
Unidirectional
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
Series
SMLJ
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Bourns SMLJ12A Datasheet
Download the complete datasheet for Bourns SMLJ12A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

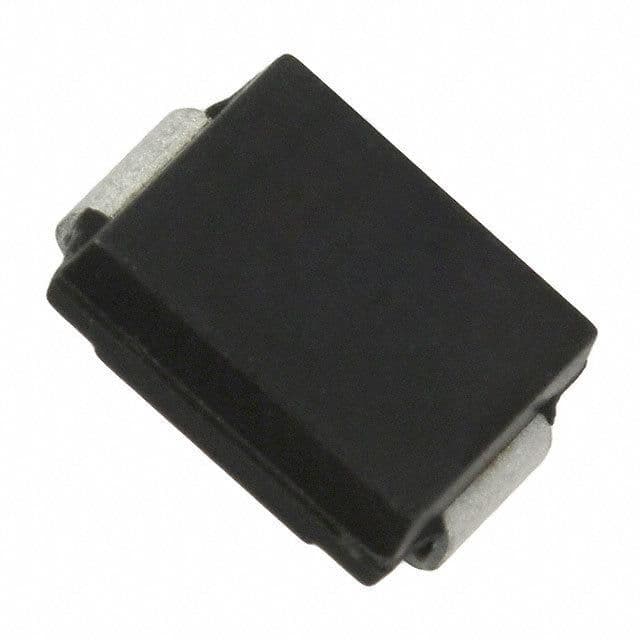

Product Images
