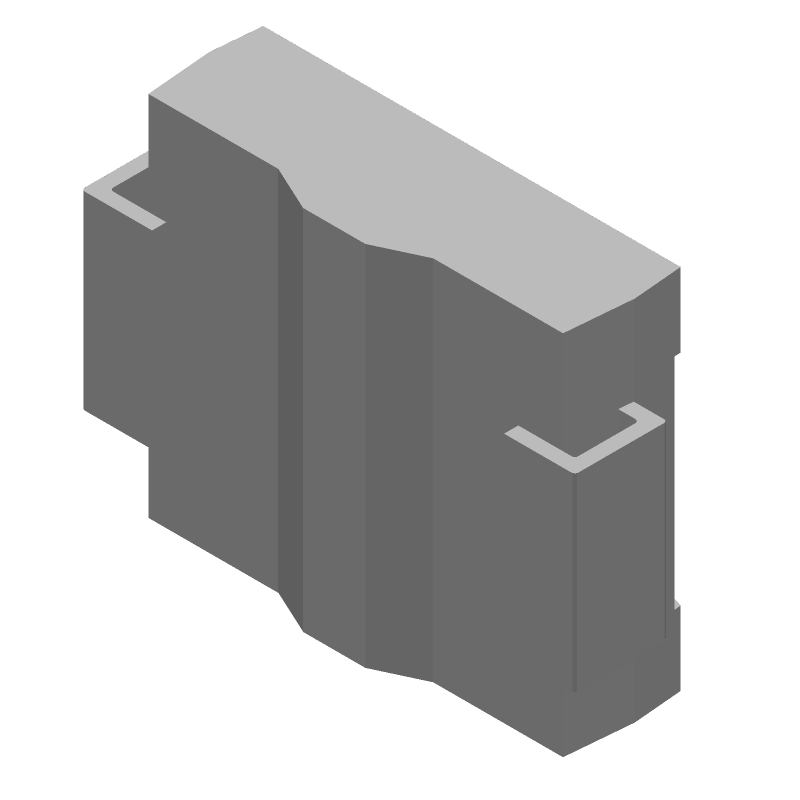

Unidirectional Transient Voltage Suppressor (TVS) diode, 3kW peak pulse power, designed for surface mount applications. Features a 45V reverse standoff voltage and a 50V minimum breakdown voltage, with a clamping voltage of 72.7V. Offers a maximum surge current of 300A and a peak pulse current of 41.2A. Operates within a temperature range of -55°C to 150°C, with a low leakage current of 5µA. Packaged in a DO-214AB (SMC) plastic package, it is RoHS compliant and supplied on tape and reel.
PackageDO-214AB
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Bourns SMLJ45A technical specifications.
General
Package/Case
DO-214AB
Clamping Voltage
72.7V
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
5uA
Min Breakdown Voltage
50V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
5uA
Max Surge Current
300A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
3.5V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
41.2A
Peak Pulse Power
3kW
Polarity
Unidirectional
Power Line Protection
No
Reverse Breakdown Voltage
50V
Reverse Standoff Voltage
45V
RoHS Compliant
Yes
Series
SMLJ
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Bourns SMLJ45A Datasheet
Download the complete datasheet for Bourns SMLJ45A to view detailed technical specifications.
