Surface mount fixed inductor featuring 3.3µH inductance with a 20% tolerance. This shielded, wirewound power inductor operates with a 12A DC current rating and a low 13.5mΩ DCR. Constructed with a ferrite and carbonyl powder core, it offers a Q factor of 20 at 100kHz and a saturation current of 27A. Designed for automotive applications, it meets AEC-Q200 standards and operates within a -40°C to 150°C temperature range.
PackageNonstandard
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Bourns SRP1238A-3R3M technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite, Carbonyl Powder
DC Current
12A
DC Resistance (DCR)
13.5mR
Depth
12.8mm
Height
3.3mm
Inductance
3.3uH
Inductance Tolerance
20%
Length
13.5mm
Max DC Current
12A
Max Operating Temperature
150°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Q Factor
20
Ratings
AEC-Q200
Reach SVHC Compliant
No
RMS Current (Irms)
12A
RoHS Compliant
Yes
Saturation Current
27A
Self Resonant Frequency
20MHz
Series
SRP1238A
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
12.5mm
Compliance
RoHS
Compliant
Datasheet
Bourns SRP1238A-3R3M Datasheet
Download the complete datasheet for Bourns SRP1238A-3R3M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

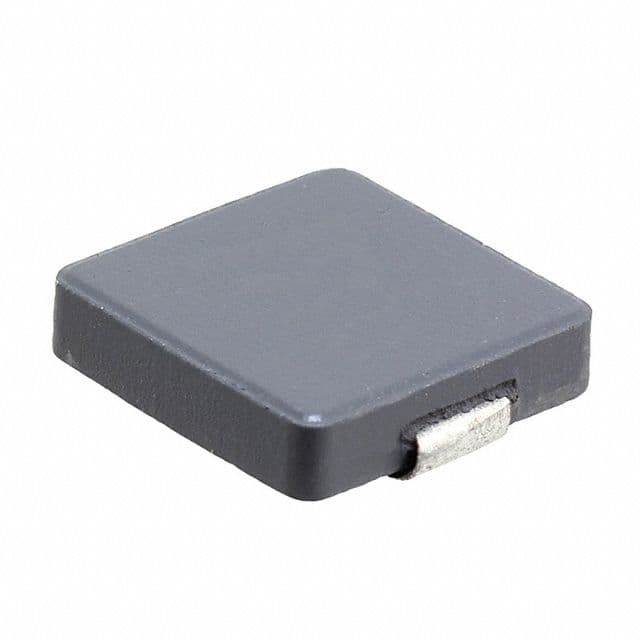

Product Images
