Shielded, general-purpose fixed inductor with 10µH inductance and 20% tolerance. Features a carbonyl powder core, 10A current rating, and 16.5mΩ DC resistance. Operates from -40°C to 150°C and is AEC-Q200 qualified. Surface mountable with SMD/SMT termination, packaged in tape and reel.
PackageNonstandard
Current Rating10A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Bourns SRP1265A-100M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite, Carbonyl Powder |
| Current Rating | 10A |
| DC Resistance (DCR) | 16.5mR |
| Depth | 12.5mm |
| Height | 6.2mm |
| Height - Seated (Max) | 0.252inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Length | 13.5mm |
| Max DC Current | 10A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 10A |
| RoHS Compliant | Yes |
| Saturation Current | 15.5A |
| Self Resonant Frequency | 10MHz |
| Series | SRP1265A |
| Series Resistance | 16.5mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRP1265A-100M Datasheet
Download the complete datasheet for Bourns SRP1265A-100M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

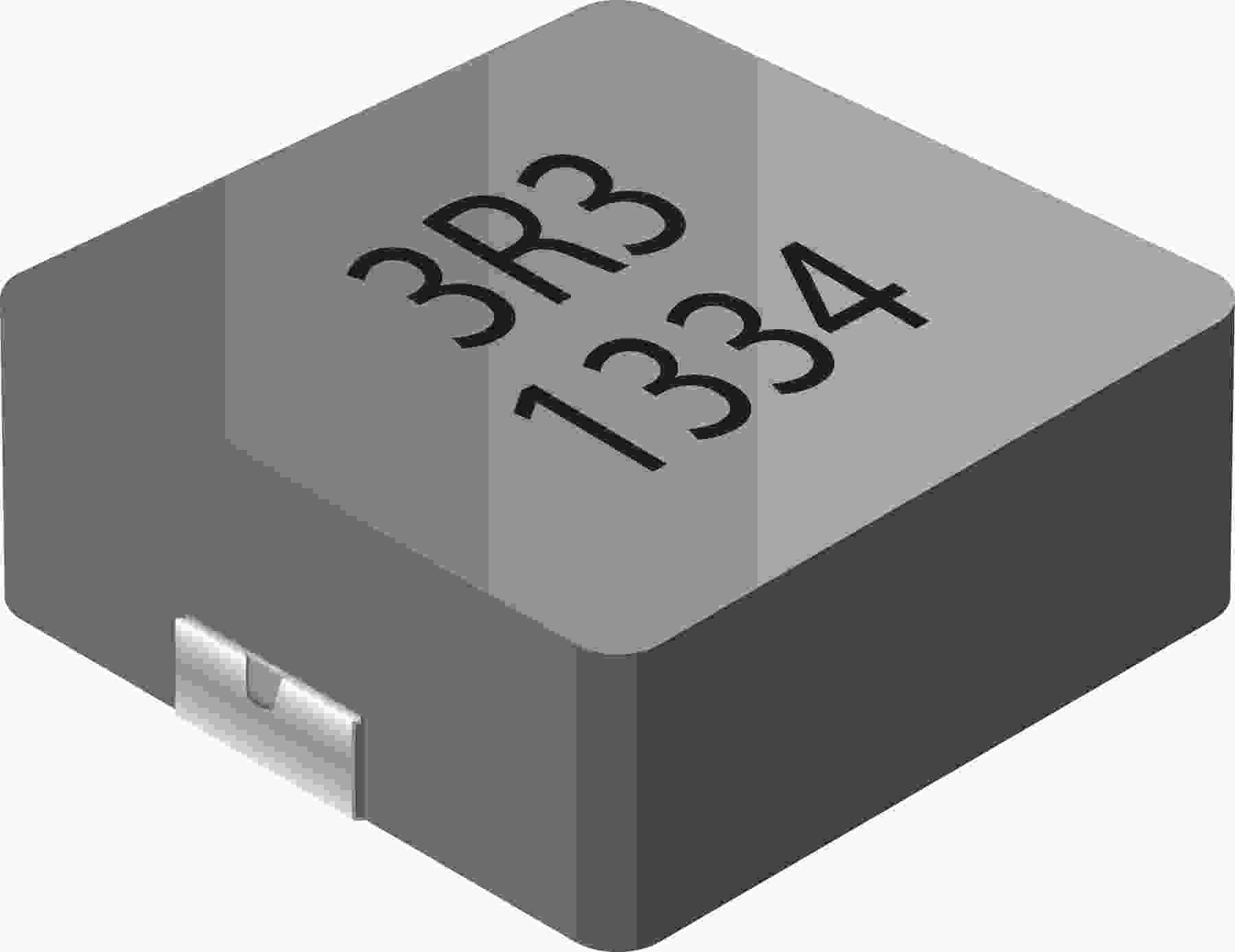

Product Images
