Shielded, surface mount general purpose inductor with 10µH inductance and 20% tolerance. Features a ferrite core, 3A current rating, and 85mΩ DC resistance. Operates across a wide temperature range from -55°C to 150°C. Packaged in a 7030 case with dimensions of 7.8mm (L) x 7mm (W) x 3.2mm (H).
Package7030
Resistance85MR
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns SRP7030-100M technical specifications.
General
Package/Case
7030
Core Material
Ferrite
Current Rating
3A
DC Resistance (DCR)
85mR
Depth
7mm
Height
3.2mm
Height - Seated (Max)
0.126inch
Inductance
10uH
Inductance Tolerance
20%
Length
7.8mm
Material
Ferrite
Max DC Current
3A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
85MR
RMS Current (Irms)
3.5A
RoHS Compliant
Yes
Sample Rate (Hz)
100kHz
Saturation Current
5A
Series
SRP7030
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Bourns SRP7030-100M Datasheet
Download the complete datasheet for Bourns SRP7030-100M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

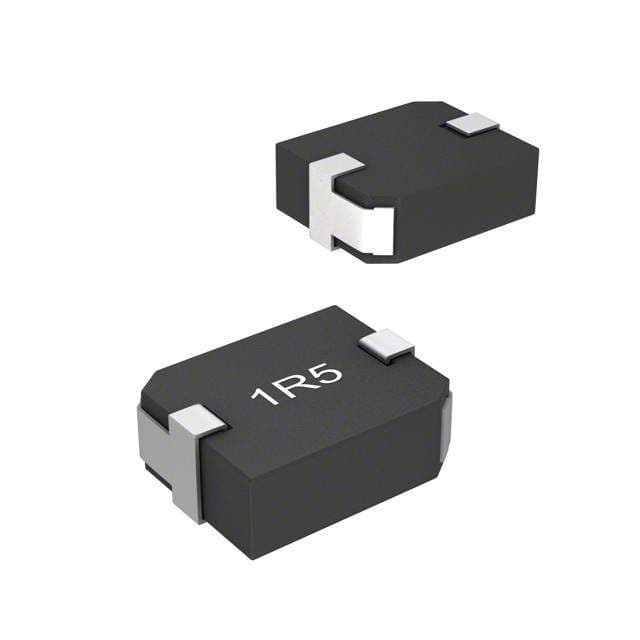

Product Images
