Technical Specifications

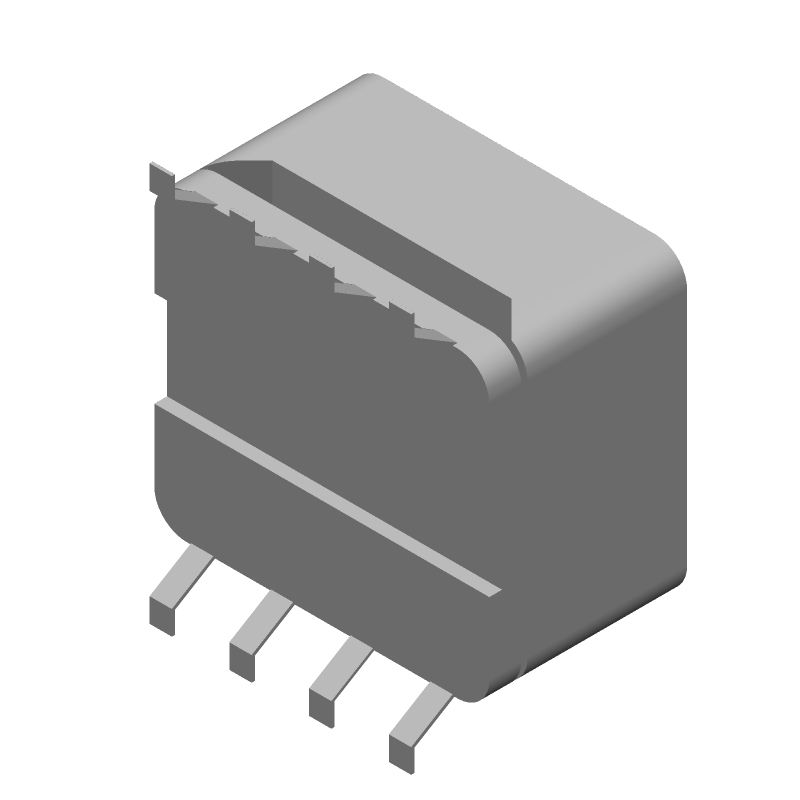

Bourns SRR0908-101YL technical specifications.
General
| Package/Case | SMD/SMT |
| Core Material | Ferrite |
| DC Resistance (DCR) | 280mR |
| Depth | 13mm |
| Height | 7.5mm |
| Inductance | 100uH |
| Length | 10.5mm |
| Max DC Current | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Q Factor | 40 |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Saturation Current | 1.3A |
| Self Resonant Frequency | 6MHz |
| Series | SRR0908 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 15% |
| Width | 9.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRR0908-101YL Datasheet
Download the complete datasheet for Bourns SRR0908-101YL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
