Surface mount shielded wirewound power inductor with 1mH inductance and 10% tolerance. Features a ferrite core, 680mA DC current rating, and 1.7 Ohm DC resistance. Operates over a temperature range of -40°C to 125°C with a Q factor of 30 at 100kHz. Self-resonant frequency is 1.8MHz. Packaged in tape and reel.
Frequency1.8MHz
PackageNonstandard
Resistance1.7R
Current Rating680mA
Quick Jump:
Technical Specifications
Bourns SRR1260-102K technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
680mA
DC Current
680mA
DC Resistance (DCR)
1.7R
Depth
12.8mm
Frequency
1.8MHz
Height
6mm
Height - Seated (Max)
0.256inch
Inductance
1mH
Inductance Tolerance
10%
Length
12.5mm
Material
Steel
Max DC Current
680mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
30
Reach SVHC Compliant
No
Resistance
1.7R
RMS Current (Irms)
680mA
RoHS Compliant
Yes
Sample Rate (Hz)
100kHz
Saturation Current
600mA
Self Resonant Frequency
1.8MHz
Series
SRR1260
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
10%
Width
12.5mm
Compliance
RoHS
Compliant
Datasheet
Bourns SRR1260-102K Datasheet
Download the complete datasheet for Bourns SRR1260-102K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

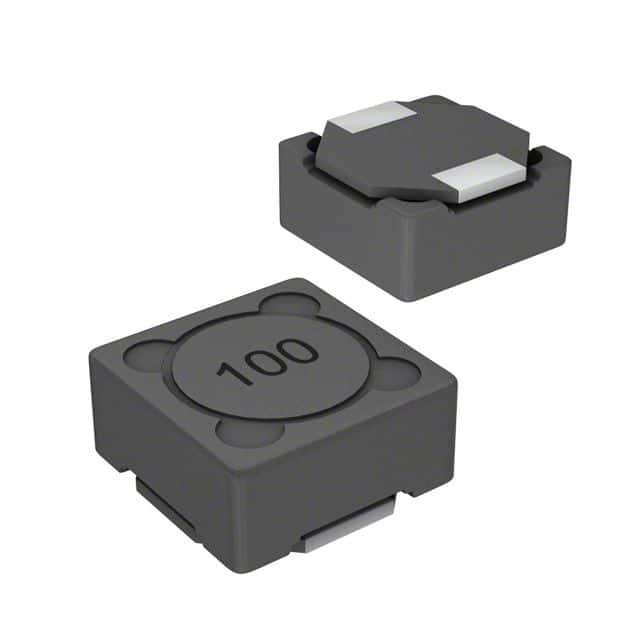

Product Images
