Surface mount shielded wirewound power inductor with 100µH inductance and 20% tolerance. Features a ferrite core, 2.1A current rating, and 150mΩ DC resistance. Operates within a temperature range of -40°C to 125°C, with a self-resonant frequency of 4.5MHz. Packaged in tape and reel for automated assembly.
Frequency4.5MHz
PackageNonstandard
Resistance150MR
Current Rating2.1A
Quick Jump:
Technical Specifications
Bourns SRR1280-101M technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
2.1A
DC Current
2.1A
DC Resistance (DCR)
150mR
Depth
12.8mm
Frequency
4.5MHz
Height
7.5mm
Height - Seated (Max)
0.315inch
Inductance
100uH
Inductance Tolerance
20%
Length
12.5mm
Material
Steel
Max DC Current
2.1A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
400
Packaging
Tape and Reel
Q Factor
18
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
150MR
RMS Current (Irms)
2.1A
RoHS Compliant
Yes
Sample Rate (Hz)
100kHz
Saturation Current
2A
Self Resonant Frequency
4.5MHz
Series
SRR1280
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
12.5mm
Compliance
RoHS
Compliant
Datasheet
Bourns SRR1280-101M Datasheet
Download the complete datasheet for Bourns SRR1280-101M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

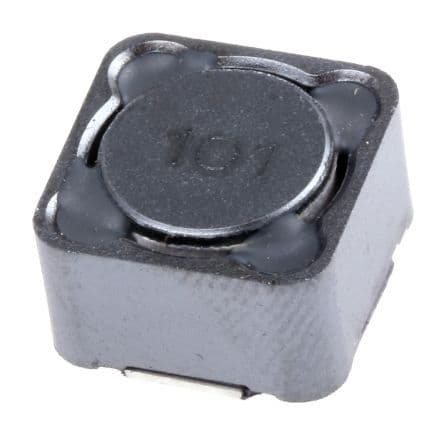

Product Images
