Bidirectional Transient Voltage Suppressor (TVS) diode in a DFN surface mount package. Features a 650V clamping voltage and 300mA current rating, with a 1µs response time for effective ESD protection. Operates at 650V with a reverse standoff voltage of 20V and a working voltage of 300V. This RoHS compliant component offers a peak pulse current of 600mA and operates within a temperature range of -40°C to 125°C. Supplied in tape and reel packaging with 3000 units per reel.
PackageDFN
Voltage Rating650V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns TBU-CA065-300-WH technical specifications.
General
Package/Case
DFN
Clamping Voltage
650V
Current Rating
300mA
Direction
Bidirectional
ESD Protection
Yes
Height
0.033inch
Length
0.255inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
1
Operating Supply Voltage
650V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
600mA
Reach SVHC Compliant
No
Response Time
1us
Reverse Standoff Voltage
20V
RoHS Compliant
Yes
Series
TBU-CA
Termination
Solder
Voltage Rating
650V
DC Rated Voltage
650V
Weight
0.076oz
Width
0.157inch
Working Voltage
300V
Compliance
RoHS
Compliant
Datasheet
Bourns TBU-CA065-300-WH Datasheet
Download the complete datasheet for Bourns TBU-CA065-300-WH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

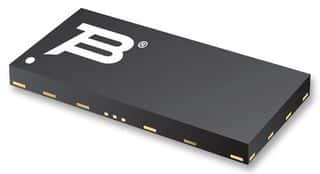

Product Images
