Broadcom
ACPM-7372-BLK
Narrow Band Medium Power Amplifier, 880MHz Min, 915MHz Max, 1 Func, 4 X 4 MM, GREEN, PLASTIC PACKAGE-10
Frequency915MHz
PackageSMD/SMT
Current635mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ACPM-7372-BLK technical specifications.
General
Package/Case
SMD/SMT
Frequency
915MHz
Gain
27dB
Max Frequency
915MHz
Min Frequency
880MHz
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Supply Voltage
4.2V
Min Supply Voltage
3.2V
Mount
Surface Mount
Number of Channels
1
Operating Frequency
915 MHz
Operating Supply Current
560mA
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
635mA
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPM-7372-BLK Datasheet
Download the complete datasheet for Broadcom ACPM-7372-BLK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

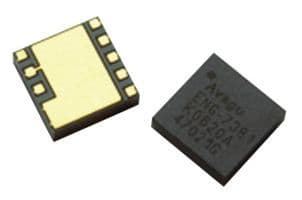

Product Images
